Setup

Load PyDPEET and set logging style to “Error” to prevent log spamming.

import pydpeet as eet

eet.set_logging_style("ERROR")

Import and Preprocessing

• Import example data

  • Test device: Neware

  • 4 checkups (capacity test, GITT)

  • Calendar ageing

• Merge the 4 files into one DataFrame for easier processing

• Add primitive segments, like “CC”,”CV” or “Rest” to the DataFrame and saving in an extra variable

dfs = eet.read(config=eet.ReadConfig.Neware_8_0_0_516, input_path="../../res/raw_data_from_cyclers")
df_merged = eet.merge_into_series(dfs)
df_segments = eet.add_primitive_segments(df_merged, eet.PrimitiveConfig.OCV_ANALYSIS_DEFAULT)

Add Columns

• Loading the configuration of the used cell (LGM50LT with 4.8 Ah)

• Adding SOC to the DataFrame

• Adding internal resistance to the DataFrame

• Adding the charge throughput to the DataFrame

config = eet.BatteryConfig.LGM50LT_NMC_4800
df_merged = eet.add_soc(df_merged, df_segments, standard_method=eet.SocMethod.WITH_RESET_WHEN_FULL, config=config)
df_merged = eet.add_resistance_internal(df_merged, config=config)
df_merged = eet.process.analyze.capacity.add_charge_throughput(df_merged)

Extract Features

• Extract iOCV

ocv_data = eet.extract_ocv_iocv(df=df_merged, config=config, visualize=False)

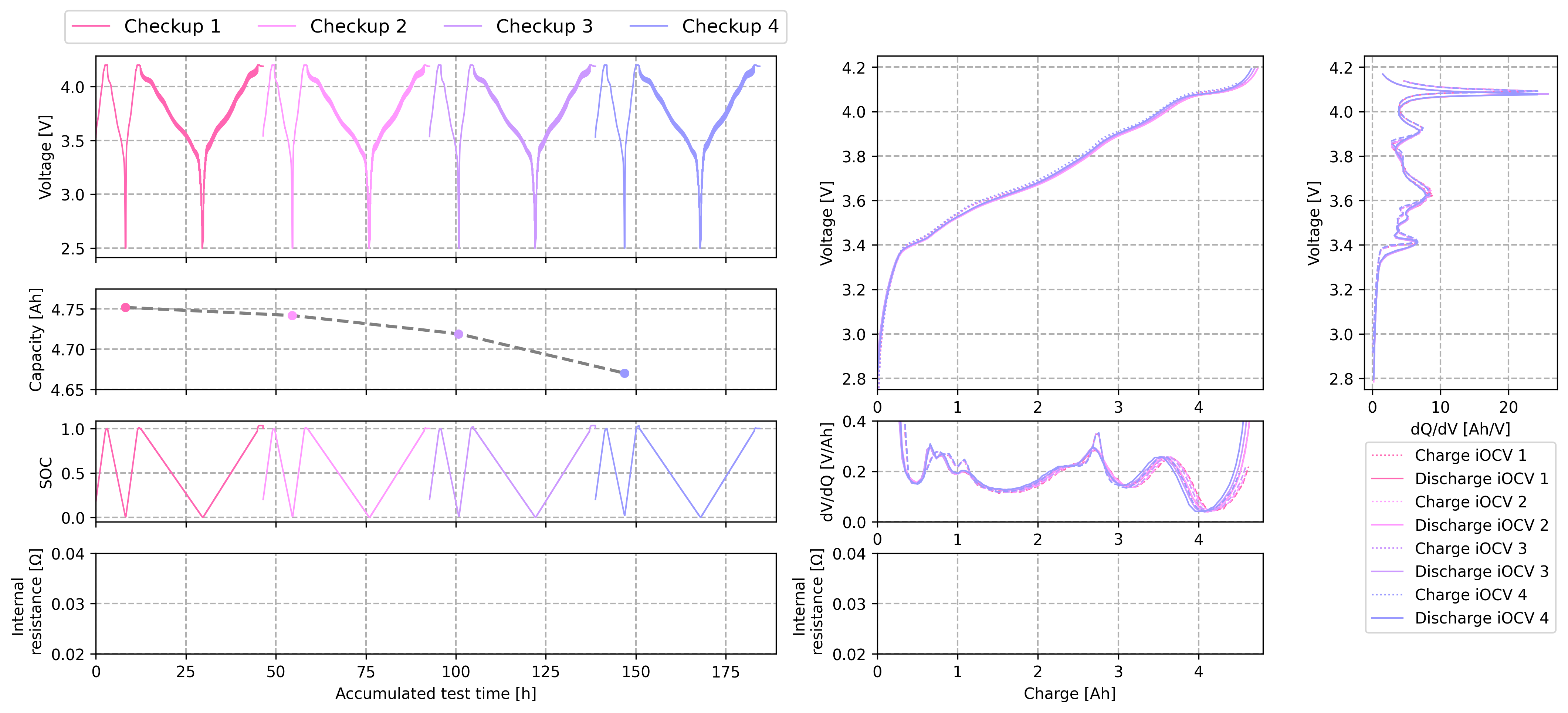

Plot Results

• Plotting the results using Matplotlib

from plot_helper import KWB_plot  # noqa

KWB_plot(df_merged, ocv_data)

Export

Export data frame to Parquet file.

eet.write(df_merged, output_path="./parquet", output_file_name="Test_Output")
